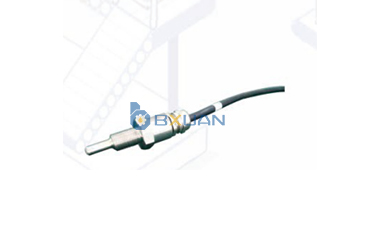

Sensor Main Technical Parameters Temperature Sensor Model: GWD130 Explosion- proof Form: Mining Sealed Type Operating Temperature: (0-130)°C

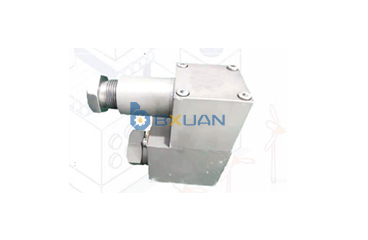

DC Electromagnet Model: DTBZ-37 Explosion-proof Type: Mining Explosion-proof Type Rated Operating Voltage: DC24V Operating Current:≤1A Rated Holding Force: 37N Weight: <1kg Dimensions: (105x45 x 98)mm

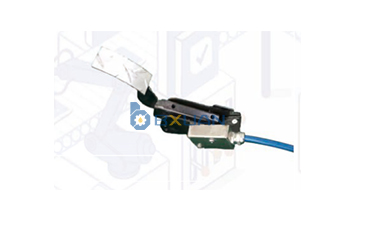

Roller Type Throttle Pedal Model: KHT5 (A) Explosion- proof Type: Mining Intrinsically Safe Type Rated Operating Voltage: DC5V Output: (1~4.2)V Intrinsically Safe Parameters: Ui: 5.5V; li 2A; Ci:

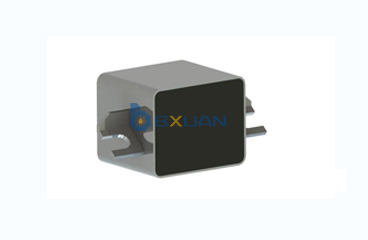

Millimeter Wave RadarModel: GUR6 Explosion-proof Type: Mining Intrinsically Safe Type Rated Operating Voltage; DC 5V Maximum Operating Current:s150mA Transmission Method: CAN bus communication Radar Detection Distance: (0-6) m Dimensions: (82x35 x40)mm

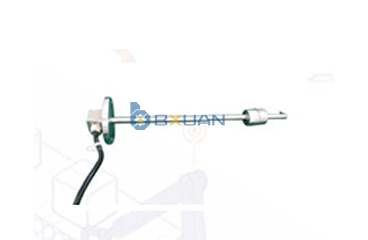

Float Ball Level Switch Model: KMU350 Explosion- proof Type: Mining Sealed Type Output Passive Switching Quantity Number of Switches: Up to 5 tongue switches, detrmined by the user Installation Depth: (200- 3000)

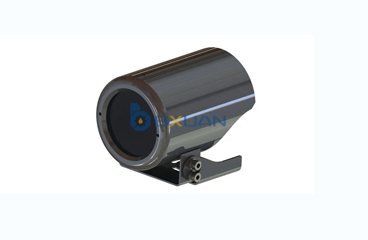

Camera Main Technical Parameters Camera Model: KBA12W Explosion-proof Type: Mining Intrinsically Safe Type Rated Operating Voltage: DC12V Maximum Operating Current: s350mA Number of Interfaces: 1 channel

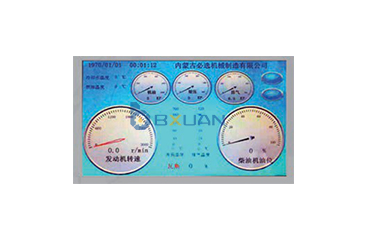

Display Screen Main Technical Parameters The 7-inch CAN bus touchscreen is equipped with independent serial and CAN bus interfaces, supporting CANopen and J1939_ CAN protocols. The serial port supports various PLC

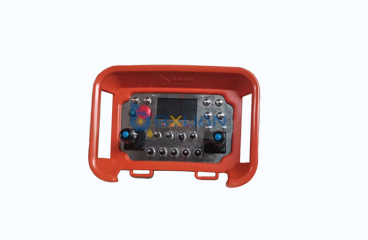

Remote Transmitter Model: FYFSOW闽 Explasion- proof Type Mining nurinsicaly Sale Type Rated Operating Voltape DC 7.4V Masimum Operating Crant s 150mA Wreless Signal Operating Frequengy Range 433MH2 :15MHe

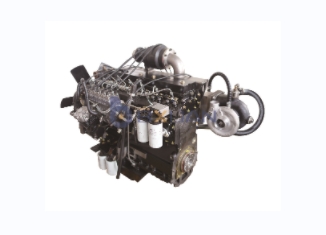

The independently developed mining explosion-proof diesel engine adopts an integrated electronic control and explosion-proof protection system, ECU bus centralized control of fuel injection
